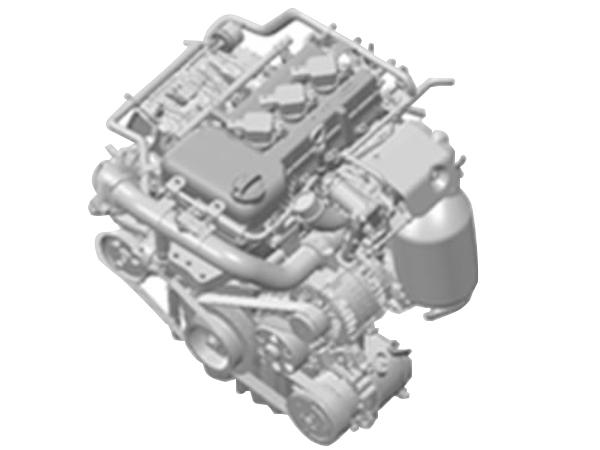

SQRE3J10 Gasoline Engine
| Code | SQRE3J10 |
| Model | 1.0L TGDI |
| Fuel | Gasoline |
| Type | Vertical, 3-cylinder straight (inline), water cooled, four stroke, double overhead camshafts, 12-valve, turbocharged gasoline engine, in-cylinder direct injection, double VVT |
| Displacement(L) | 0.998 |
| Bore×Stroke(mm) | 71×84 |
| Compression Ratio | 10.5 |
| Rated Power(kW@r/min) | 85/5500 |
| Max.Torque(N.m@r/min) | 185/1500～4000 |
| Specific Power(kW/L) | 85.2 |
| Overall Dimension L×W×H(mm) | Model in design |
| Weight(kg) | Model in design |
| Emission | CN6，BJ6，EU6c |
| Transmission | MT, CVT |
| Application | Passenger cars, SUV, MPV |
