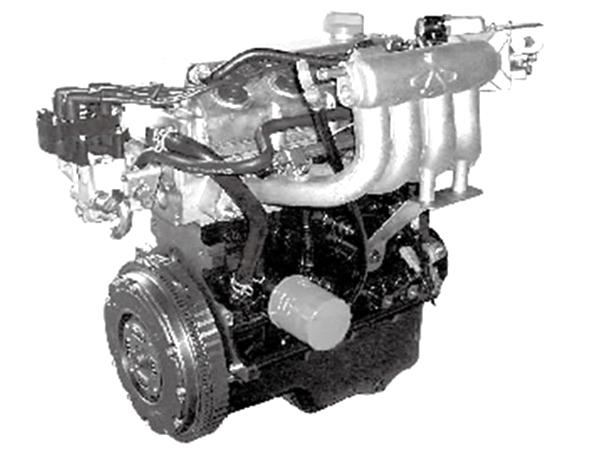

SQRD4G15B Gasoline Engine
1.5L displacement, Naturally aspirated engine (NA)
Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 valves, variable valve timing (VVT)
| Code | SQRD4G15B |
| Displacement (L) | 1.497 |
| Bore x Stroke (mm) | 77.4 x79.52 |
| Compression Ratio | 11.4 |

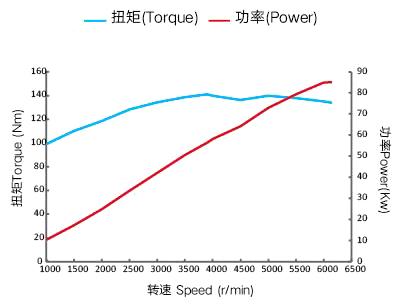

| Rated Power (kW@r/min) | 78/6000 |
| Max Torque (N.m@r/min) | 135/2750 |
| Specific Power (kW/L) | 52.0 |
| Overall Dimension (mm) | 630 x 610 x 680 |
| Weight (kg) | 122 |
| Emission | Euro V |
