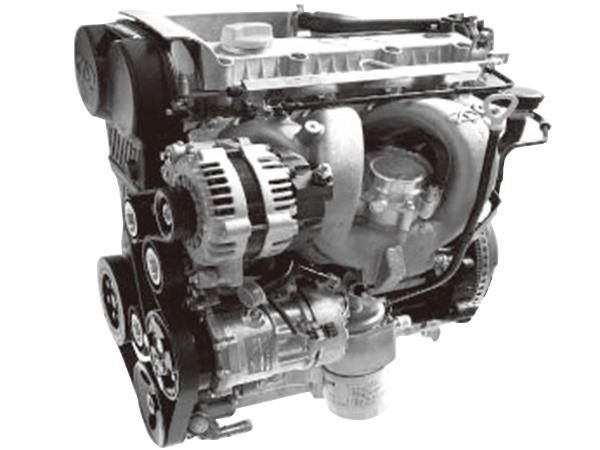

SQR481FC Gasoline Engine
1.6L displacement, Gasoline, Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 Valves.
When coupled with Chery's Tiggo, SQR481FC gasoline engine could be used in diverse passenger vehicles, generating sets, and ect.
| Code | SQR481FC |
| Model | 1.8L NA |
| Fuel | Gasoline |
| Type | Vertical, 4-cylinder straight (inline), water cooled, four stroke, double overhead camshaft |
| Displacement(L) | 1.845 |
| Bore×Stroke(mm) | 81×89.5 |
| Compression Ratio | 10.5 |
| Rated Power(kW@r/min) | 97/5750 |
| Max.Torque(N.m@r/min) | 170/4300~4500 |
| Specific Power(kW/L) | 52.6 |
| Overall Dimension L×W×H(mm) | 641×613×644 |
| Weight(kg) | 160 |
| Emission | GB4 |
