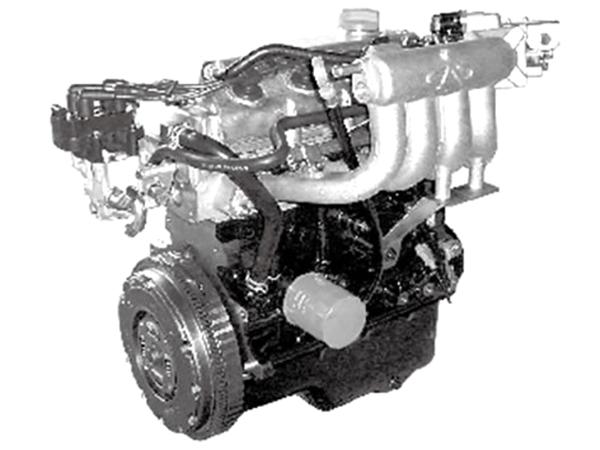

SQR477F Gasoline Engine
1.5L displacement, Naturally aspirated engine (NA)
Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 valves
| Code | SQR477F |
| Displacement (L) | 1.497 |
| Bore x Stroke (mm) | 77.4 x79.52 |
| Compression Ratio | 10.5 |

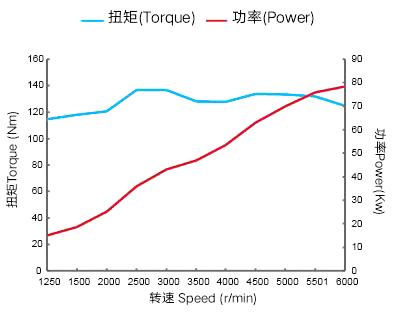

| Rated Power (kW@r/min) | 80/6000 |
| Max Torque (N.m@r/min) | 140/4500 |
| Specific Power (kW/L) | 53.0 |
| Overall Dimension (mm) | 615x 580 x695 |
| Weight (kg) | 110 |
| Emission | Euro IV |

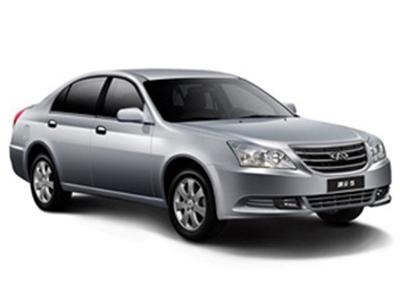

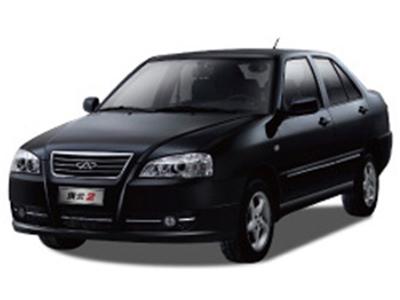

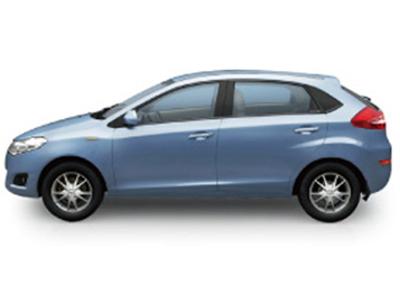

SQR477F gasoline engine could be coupled with Chery's 2, A3 vehicles. Meanwhile, it could also be used in diverse passenger vehicles, generator sets and etc.
