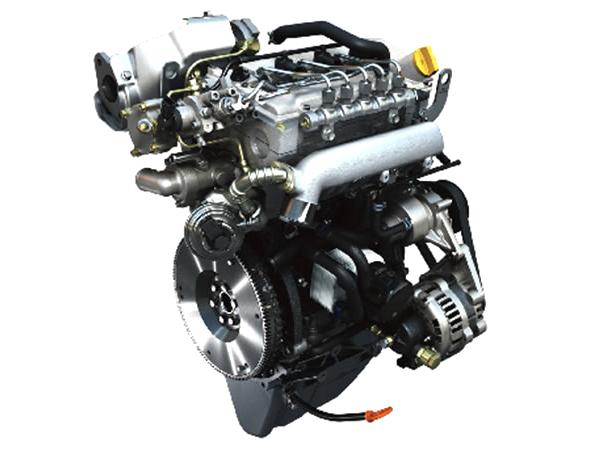

SQR372A Diesel Engine (46kw)

SQR372A Diesel Engine (46kw)

Engine displacement of diesel engine is 1.0 L, and the power is 46kW. When coupled with Chery's manual transmission, it could be installed on diverse mini vehicles.

1.0L displacement, transistor controlled ignition (TCI), slant type, inline 4-cylinder (type L4), double overhead camshaft (DOHC), 12 valves, common rail and exhaust gas recirculation (EGR) system.

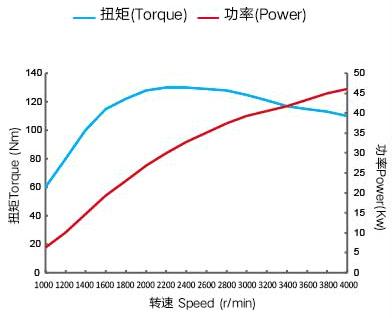

External Characteristic Curve
External Characteristic Curve
SQR372A 1.0 L TCI Diesel engine parameters
Code SQRE4G16
Displacement (L) 1.0L
Bore x Stroke (mm) 72x81.8
Compression Ratio 17.5
Rated Power (kW@r/min) 46/3600
Max Torque (N.m@r/min) 125/2000
Specific Power (kW/L) 46.0
Overall Dimension (mm) 608 x 787 x 507
Weight (kg) 131
Emission Euro III
72 series diesel engine's features

1. Advanced technologies
High pressure common rail fuel injection （HPCR1600bar）
Turbo compressor inlet (TCI)
Exhaust gas recirculation (EGR)

2. Integrated technologies
Integrated design for cooling and lubrication system
Integrated design for triton system
Integrated design for generator and vacuum pump

3. Technologies for components
High-precision car atomizer from Boshi
Auto-tensioner
Efficient air inlet
Aluminum alloy piston with internal cooling channel

4. Subsystem technologies
Gear train with single-or poly-rib belt
Timing chain system
Chain-driving oil pump
Double overhead camshaft (DOHC)
16 valves

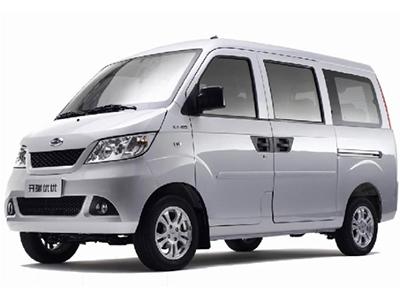

72 series diesel engine could be installed on following vehicle
Self-allocated vehicle
