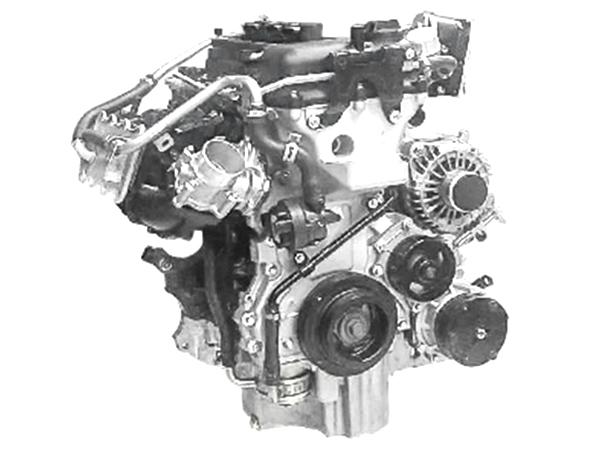

SQRE3F10 Gasoline Engine

SQRE3F10 Gasoline Engine

Naturally aspirated engine (NA), 1.0L displacement
Inline 3-cylinder (type L3), double overhead camshaft (DOHC), 12 valves, variable valve timing (VVT)

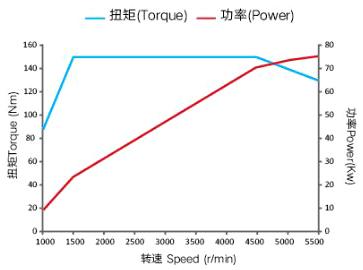

External Characteristic Curve
External Characteristic Curve
SQRE3F10 1.0L NA gasoline engine parameters
Code SQRE3F10
Displacement (L) 0.998
Bore x Stroke (mm) 71x84
Compression Ratio 10
Rated Power (kW@r/min) 75/5500
Max Torque (N.m@r/min) 150/1500~4500
Specific Power (kW/L) 75.2
Overall Dimension (mm) 545x 585 x 620
Weight (kg) 100
Emission Euro V,Euro VI
