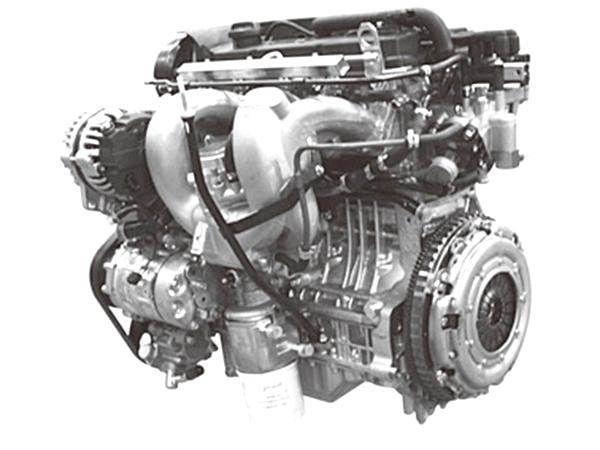

The 2.0L VVT gasoline engine has lots of similarities with the 1.8L SQR481FC engine in structural design. The configuration of electronic throttle valve and MPI system is identical. This 2.0L gasoline engine, however, has larger bore and stroke.

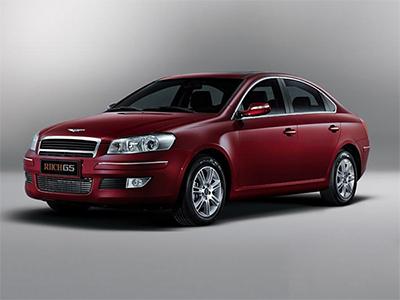

Since this type of vehicle engine is totally manufactured from cast aluminum, it is even lighter than the 1.6/1.8L SQR481FC engine which comes with cast iron cylinders. To be specific, it is 10kg lighter. In addition, this lightweight engine has excellent performance in power. Its maximum power can reach 102kW. Now, the 2.0L VVT gasoline engine has been used greatly for Chery A3, Chery G5 and other types.
Technical Parameters of 2.0L VVT Gasoline EngineCode | |
Model | 2.0VVT |
Fuel | Gasoline |
Type | L4, DOHC, VVT, Cast Aluminium Cylinder Block |
Displacement (L) | 1.971 |
Bore × Stroke (mm) | 83.5×90 |
Compression Ratio | 10.5 |
Rated Power (kW/rpm) | 102/5800(138.8hp) |

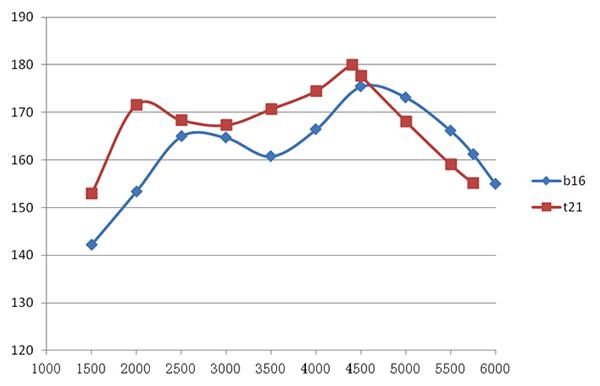

Max. Torque (Nm/rpm) | 180/4500 |
Specific Power(kW/L) | 51.8 |

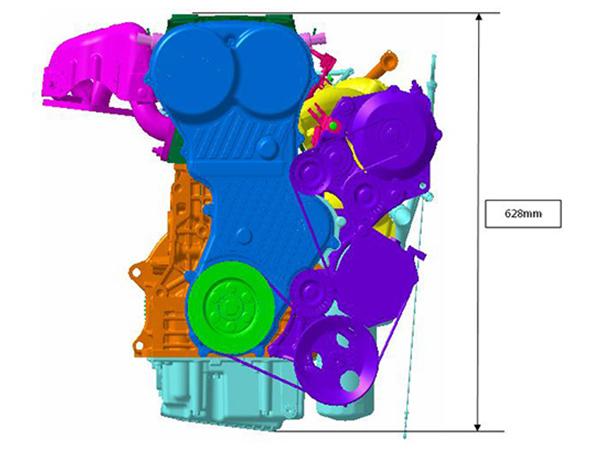

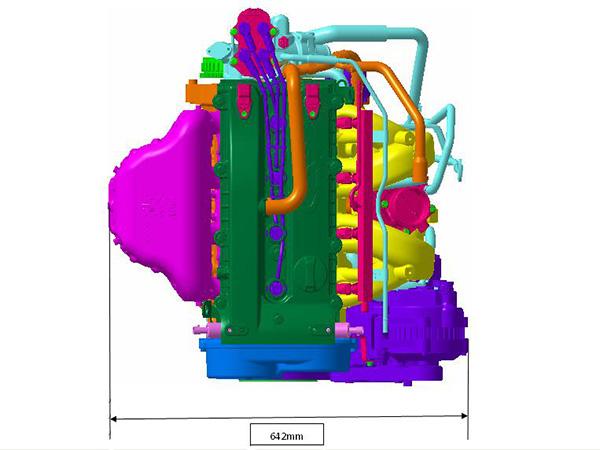

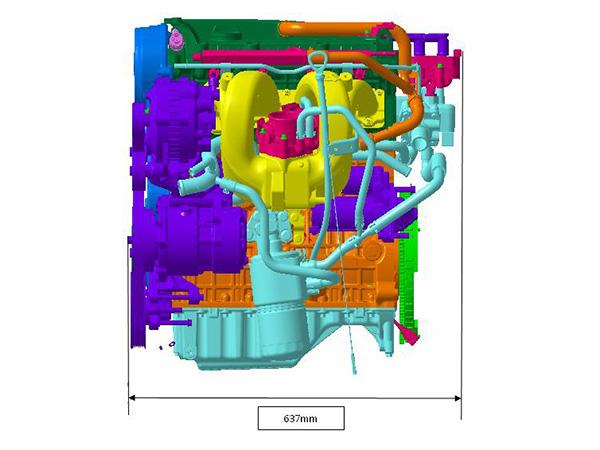

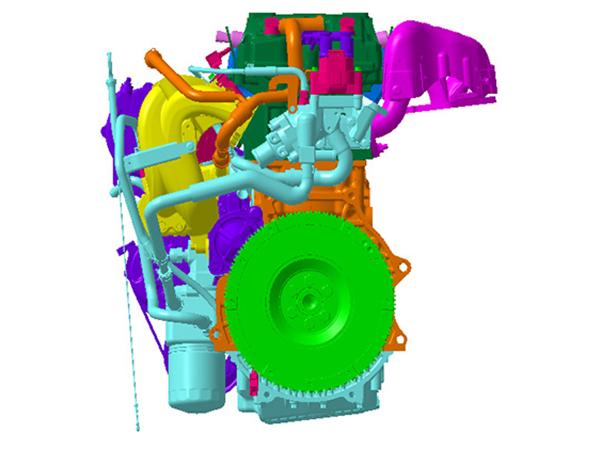

Overall Dimensions L×W×H(mm) | 641×613×644 |
Weight(kg) | 148 |
Emission Standard | Euro IV |
