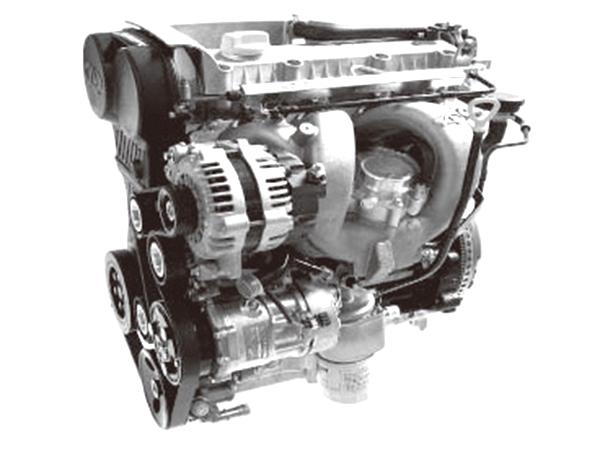

1.8L NA Gasoline Engine

1.8L NA Gasoline Engine

The 1.8L NA gasoline engine has been used perfectly for Chery Tiggo series. It comes with straight-four cylinders, 16 valves and double overhead camshafts. With MPI system and cast iron cylinder, this naturally aspirated engine provides great cost effectiveness. In addition, the connecting rod features cracking technology and the cylinder bore hole is processed using high precision honing technology.

Owing to such structural features, this four cylinder engine comes with large power and torque, low fuel consumption, small vibration and low noise. Its emission reaches the Euro IV standard.

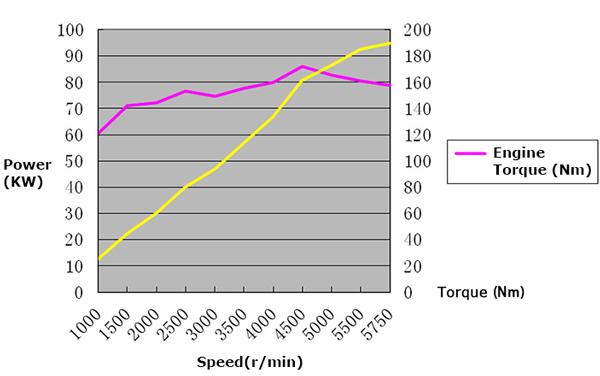

SQR481FC External Characteristic Curve
Technical Parameters of 1.8L NA Gasoline Engine
Code SQR481FC
Model 1.8NA
Fuel Gasoline
Type L4, DOHC, 16 Valves
Displacement (L) 1.845
Bore × Stroke (mm) 81×89.5
Compression Ratio 10.5
Rated Power (kW/rpm) 97/5750(132.0hp)
Max. Torque (Nm/rpm) 170/4300 ~ 4500
Specific Power(kW/L) 53.8

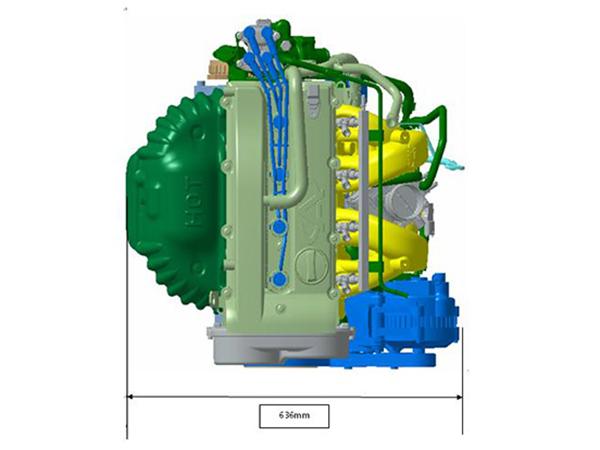

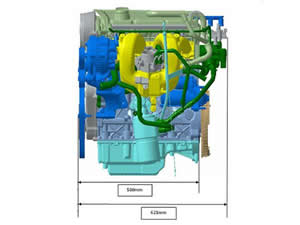

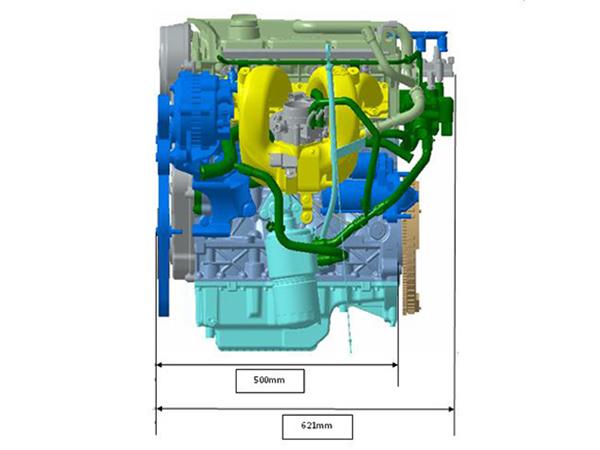

Overall Dimensions L×W×H(mm) 641×613×644
Weight(kg) 160
Emission Standard Euro IV

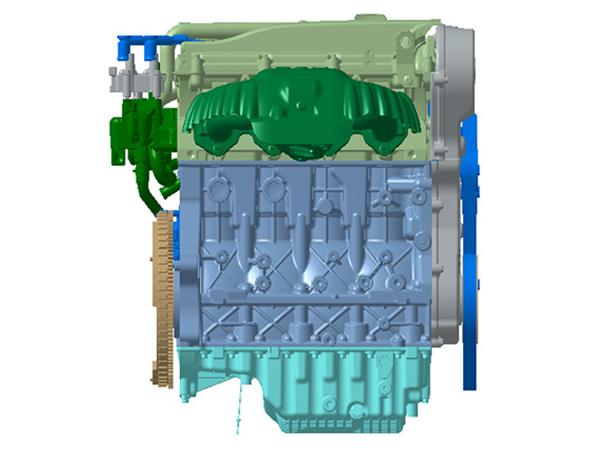

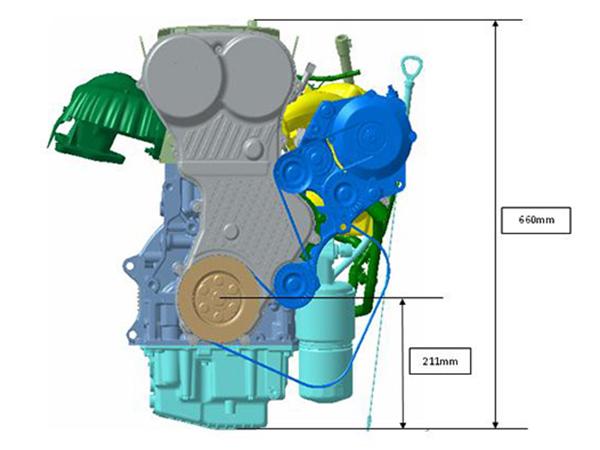

  • FRONT

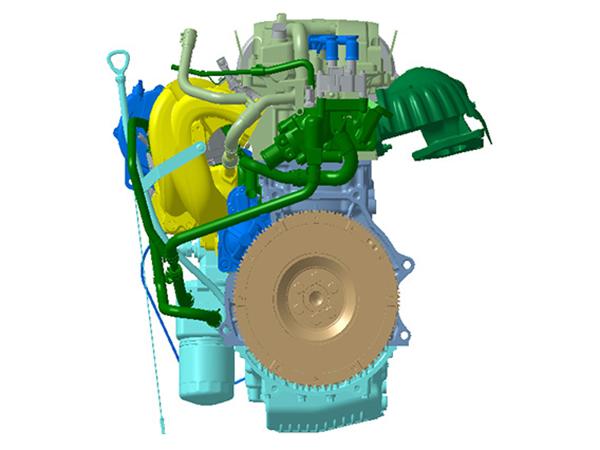

  • BACK
  • RIGHT
  • LEFT
  • TOP

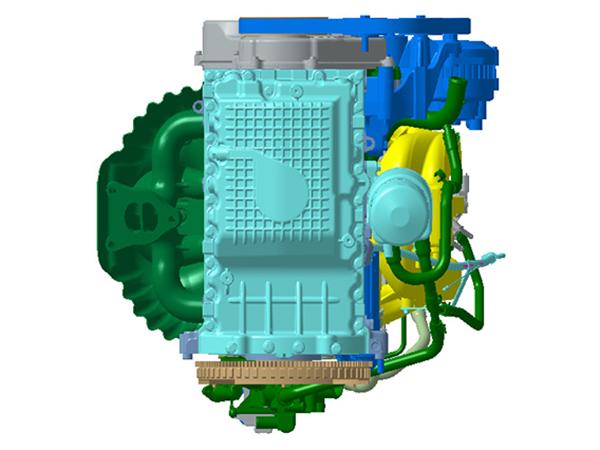

  • BOTTOM
