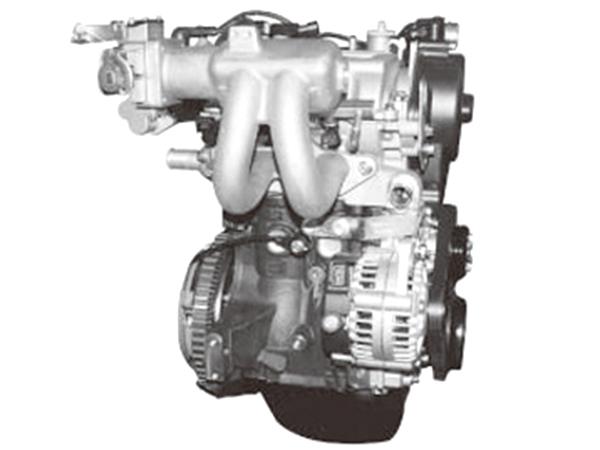

0.6L NA Gasoline Engine
The 0.6L NA gasoline engine is a straight-twin engine with DOHC and 8 valves. It features water cooling and MPI technology. This water cooling engine is available in vertical and horizontal types. Suitable applications are ATV, UTV, large displacement tricycle, low speed car, generator set, etc.
Technical Parameters of 0.6L NA Gasoline Engine (Vertical Type)
Code | SQRB2G 06 |
Model | 0.6L NA |
Fuel | Gasoline |
Type | 0.6L, Vertical engine, L2, DOHC, 8 Valves |
Displacement (L) | 0.586 |
Bore × Stroke (mm) | 72×72 |
Compression Ratio | 9.5 |
Rated Power (kW/rpm) | 26/5500(35.4hp) |
Max. Torque (Nm/rpm) | 52/3500~4000 |
Specific Power(kW/L) | 44.4 |
Overall Dimensions L×W×H(mm) | 404×418×563 |
Weight(kg) | 63 |
Emission Standard | Euro III |
Technical Parameters of 0.6L NA Gasoline Engine (Horizontal Type)
Code | SQRB2G06W |
Model | 0.6L NA |
Fuel | Gasoline |
Type | 0.6L, Horizontal engine, L2, DOHC, 8 Valves |
Displacement (L) | 0.586 |
Bore × Stroke (mm) | 72×72 |
Compression Ratio | 9.5 |
Rated Power (kW/rpm) | 26/5500(35.4hp) |
Max. Torque (Nm/rpm) | 52/3500~4000 |
Specific Power(kW/L) | 44.4 |
Overall Dimensions L×W×H(mm) | 390×568×470 |
Weight(kg) | 63 |
Emission Standard | Euro III |
