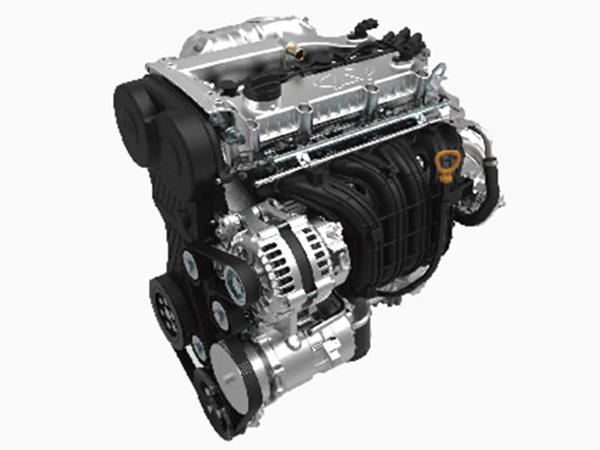

SQRD4G20 Gasoline Engine
2.0L displacement,Naturally aspirated engine (NA), Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 Valves, variable valve timing (VVT)

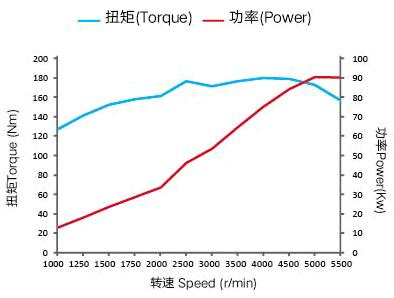

External Characteristic Curve
| Code | SQRD4G20 |
| Displacement (L) | 1.971 |
| Bore x Stroke (mm) | 83.5 x 90 |
| Compression Ratio | 10.5 |
| Rated Power (kW@r/min) | 90/5500 |
| Max Torque (N.m@r/min) | 180/4000 |
| Specific Power (kW/L) | 45 |
| Overall Dimension (mm) | 641 x 613 x 644 |
| Weight (kg) | 137 |
| Emission | Euro V |
When coupled with Chery's G5, SQR484F gasoline engine could be used in diverse passenger vehicles, generating sets, and ect.
