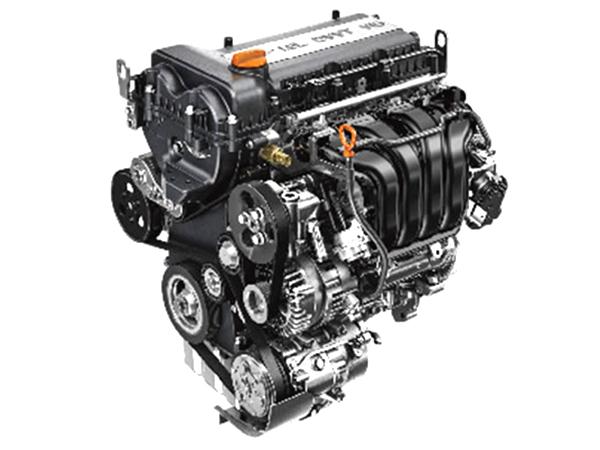

SQRE4G16 Gasoline Engine

SQRE4G16 Gasoline Engine

1.5L displacement, Transistor controlled ignition (TCI), Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 valves, Timing Silent Chain, Double variable valve timing (DVVT).

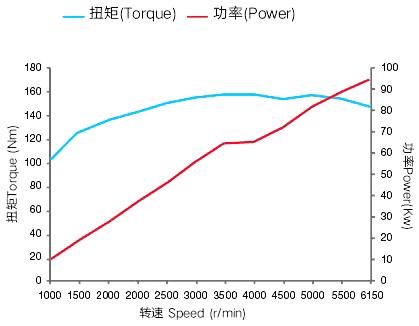

External Characteristic Curve
External Characteristic Curve
SQRE4G16 1.5 L TCI Gasoline Engine parameters
Code SQRE4G16
Displacement (L) 1.498
Bore x Stroke (mm) 72 x 83
Compression Ratio 9.5
Rated Power (kW@r/min) 108/5500
Max Torque (N.m@r/min) 210/1750-4000
Specific Power (kW/L) 74.8
Overall Dimension (mm) 616 x 623 x661
Weight (kg) 136
Emission Euro V ,Euro VI

SQRE4G16 gasoline engine could be installed on Chery's Tiggo, A3, G3, Qoros 3 and etc. Besides that, it could also be used in many other passenger vehicles and generator sets.
