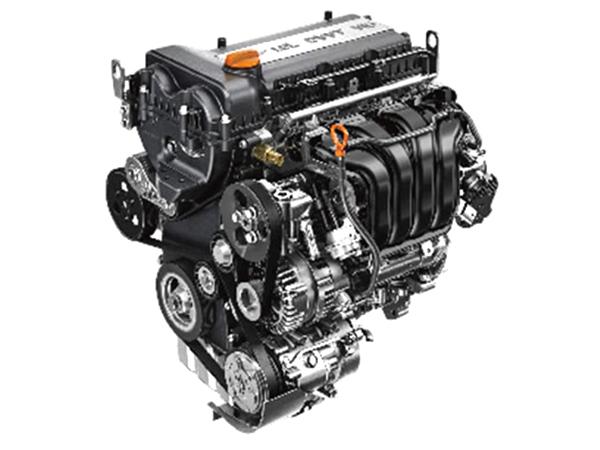

SQRE4G15B Gasoline Engine
1.5L displacement, Naturally aspirated engine (NA), Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 valves, Timing Silent Chain, Double variable valve timing (DVVT), Variable induction system (VIS)

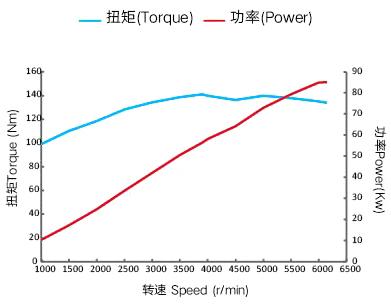

External Characteristic Curve
| Code | SQRE4G15B |
| Displacement (L) | 1.5 |
| Bore x Stroke (mm) | 77 x 80.5 |
| Compression Ratio | 11 |
| Rated Power (kW@r/min) | 85/6150 |
| Max Torque (N.m@r/min) | 141/3800 |
| Specific Power (kW/L) | 55.4 |
| Overall Dimension (mm) | 630 x 675 x 660 |
| Weight (kg) | 125 |
| Emission | Euro V ,Euro VI |
