F3J12 Petrol Engine, Turbocharged Engine

F3J12 Gasoline Engine

Product Description

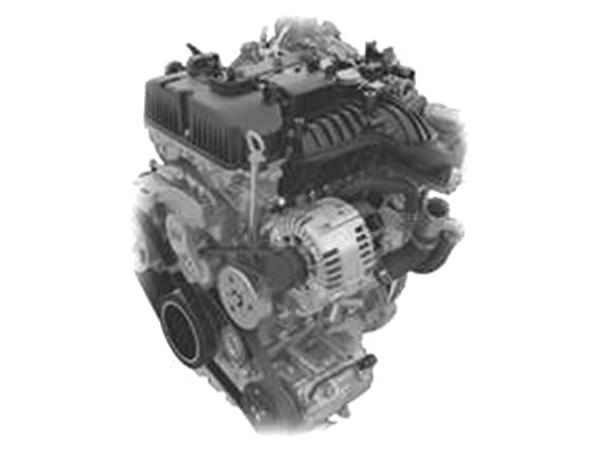

The F3J12 petrol engine developed by CHERY ACTECO has 1.2L displacement. It is typically designed with three in-line cylinders, double overhead camshafts and 12 valves in cast aluminum cylinder block. Together with advanced GDI, TCI and VVT technology, the turbocharged engine fits perfectly for passenger vehicles, generator units, etc.

Technical Parameters of F3J12 Petrol Engine

Code	F3J12
Model	1.2L TGDI
Fuel	Gasoline
Type	3-cylinder straight (inline), double overhead camshaft, 12-valve, turbocharged intercooled, VVT, in-cylinder direct injection
Displacement(L)	1.198
Bore×Stroke(mm)	77x85.8
Compression Ratio	9.9
Rated Power(kW@r/min)	110/5750
Max.Torque(N.m@r/min)	230/2000-4000
Specific Power(kW/L)	91.8
Overall Dimension L×W×H(mm)	546x605x650
Weight(kg)	122
Emission	CN6，BJ6，EU6c
Transmission	MT, CVT, DCT
Application	Passenger cars, SUV, MPV
