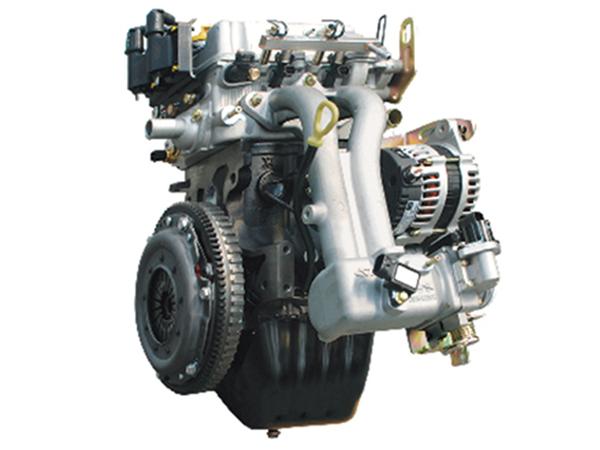

SQRB2G06W Gasoline Engine

SQRB2G06W Gasoline Engine

Naturally aspirated engine (NA), 0.6L displacement
Horizontal type engine, Inline 2-cylinder (Type L2), double overhead camshaft (DOHC), 8 valves

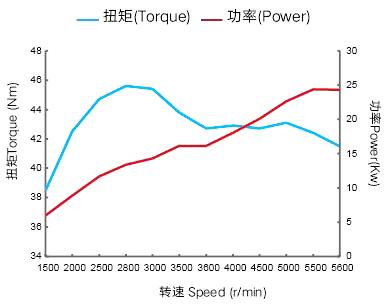

External Characteristic Curve
External Characteristic Curve
SQRB2G06W 0.6L NA Gasoline Engine parameters
Code SQRB2G06W
Displacement (L) 0.586
Bore x Stroke (mm) 72x72
Compression Ratio 9.5
Rated Power (kW@r/min) 24/5600 (32.7ps)
Max Torque (N.m@r/min) 48/3000 〜4000
Specific Power (kW/L) 41
Overall Dimension (mm) 400 x 570 x 590
Weight (kg) 64
Emission Euro III
